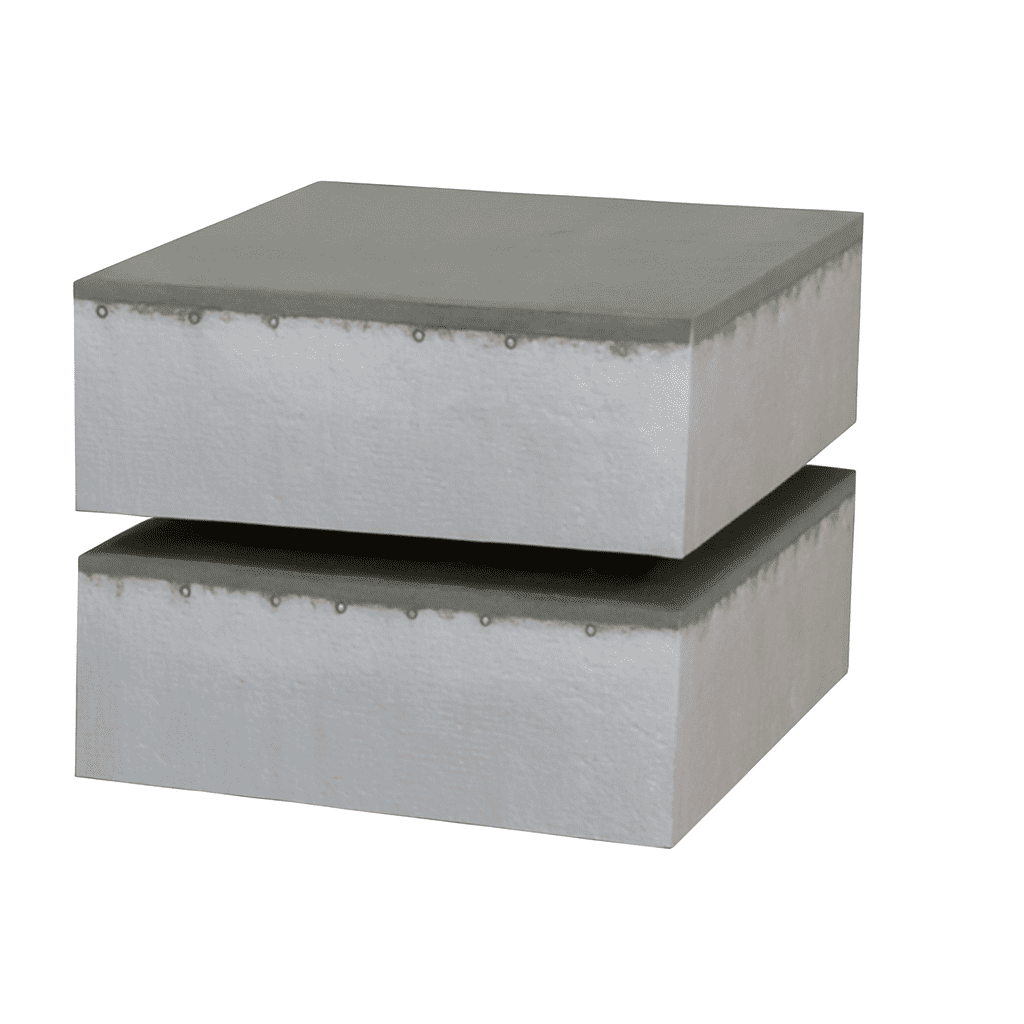

Chema Block
Chema Block is an advanced lightweight void-forming solution designed for ribbed slab systems and wide-span concrete structures. Manufactured from expanded polystyrene foam (EPS) and coated with a durable lightweight polymeric concrete layer, Chema Block significantly reduces the overall weight of slabs while enhancing structural efficiency. This system offers major savings in concrete and steel consumption, improves construction speed, and provides exceptional thermal and acoustic benefits. Ideal for bridges, tunnels, ceilings, and high-load interior slabs, Chema Block ensures a stronger, lighter, and more economical structural design.
Category Solution Systems
Chema Block is a lightweight EPS void former coated with polymeric concrete, engineered to reduce slab weight, minimize material consumption, and simplify installation for ribbed and wide-span slab systems.
Properties
easy install and apply
Enhances structural efficiency
Lightweight
saving buikding cost 40
saving concrete volume 35%
saving steel reinforcement 30%
strong adhesion
Areas of Use
bridges
Interior slab uplift applications
Ribbed slab systems
tunnels
Wide-span structural slabs requiring weight reduction
Installation Method
• Spans 5–7 m
One-way Chema Blocks placed in continuous rows.
Ribs spacing: 40–60 cm.
Rib width: 10–12 cm.
• Spans 8–12 m
Two-way Chema Blocks placed with ribs in both directions.
Ribs spacing: 60–100 cm.
Rib width: 12–15 cm.
Notes
• Electrical conduits should pass between ribs.
• Rebar must be lifted above blocks using rebar spacers.
• Slab and finishing layers should be water-cured for at least 7 days to enhance concrete strength.
Technical Data
| Description | Unit | Values |
|---|---|---|
| Weight / m² | Kg | 25–50 |
| Concrete layer thickness | Cm | 1.5 : 1 |
| Block depth | Cm | 10 : 100 |
| Block dimensions | Cm | According to design |
| EPS density | Kg/m³ | 10–35 |
| Fracture stress | MPa | 5 |
| Water absorption | % per inch | 4.2 : 20 |
| Compressive strength | KPA | 68–185 |
Safety Precautions
• Chema Block is breakable and should be handled carefully.
• Keep away from sparks, fire, and heat sources.
• Avoid contact with strong oxidizing agents or aromatic solvents.
• Do not stack blocks improperly or under excessive weight.
Storage & Shelf Life
• Store in a dry, shaded, ventilated area.
• Avoid prolonged exposure to sunlight or high temperatures.
• Maintain flat, clean storage surfaces.
• Long shelf life when properly stored.
